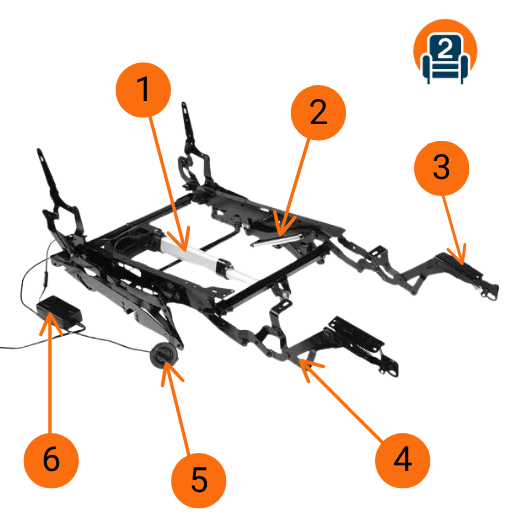

Replacement Recliner Parts Diagram
1. Actuator Motor – Powers the reclining operation.
2.Tension Spring – Helps with bringing the footrest back into the closed position.
3. Footrest Bracket – Extends to support the user’s legs.
4. Scissor Mechanism – Enables reclining movement.
5. Control Switch – Operates the opening and closing of the recliner.
6. Control Box with Power Cable – Manages the power supply to the recliner.
Find Affordable Recliner Parts Online with Number2project
At Number2project Recliner Repair Experts, we fix over 700 recliners every year, so we know exactly where to find the best and most affordable parts online. Whether you need cables, motors, scissor mechanisms, or switch controller, we can guide you to trusted websites to get the parts you need without spending too much. With our experience, we’ll help you save time and money and make sure your recliner works like new again. Let us help you find the right parts fast!
As an Amazon Associate, I earn from qualifying purchases. This means that if you click on an affiliate link and make a purchase, I may earn a small commission at no additional cost to you. I only recommend products I believe are valuable and relevant for my readers
1. Recliner Motor Actuator
The recliner motor/actuator is a key part of your recliner. It controls the footrest and backrest, allowing them to open and close by pushing or pulling the reclining mechanism. The actuator connects to the mechanism using bolts, pins, or both. If any part of the actuator breaks, the footrest and backrest will stop working.
Replacing the entire actuator/motor is usually easier than fixing a single broken part. To get the right replacement, you need to match the brand and serial number printed on the motor. If you can’t find the exact match, look for one with the same measurements, connections, minimum installation size, and the same or more cables.
You can find the parts you need on our Recliner Parts page in our shop. Let us help you get your recliner working again!
2. Recliner Tension Spring
The tension spring plays a crucial role in helping the reclining mechanism keep the footrest and backrest in the open or closed position. It provides the necessary tension to support smooth movement and hold the recliner in place. Tension springs come in different sizes, so it’s important to find the right fit for your recliner. You can easily find affordable options on Amazon, where they are available in various sizes to match your needs and budget.
3. Recliner Footrest Brackets
Recliner footrest brackets keep the footrest securely attached to the reclining mechanism using four bolts or four screws. They also help stabilize the mechanism when the recliner is opened or closed. In most cases, footrest brackets are part of the scissor mechanism and cannot be purchased or replaced separately because they are connected with rivets. If the brackets break, the entire scissor mechanism usually needs to be replaced. For affordable replacements, visit trusted online sources like Amazon or Ebay to find the right part for your recliner.
4. Reclining Mechanism Scissors
The scissors are a key part of the reclining mechanism and play the main role in opening and closing the recliner. They support the smooth movement of the backrest and footrest. If any part of the scissors is broken, it can cause the recliner to drop, giving the illusion of sagging. It may also prevent the footrest from opening or closing properly. In most cases, replacing the entire scissor mechanism is the best solution to restore the recliner’s proper function. One of the main producers of reclining mechanisms is Leggett & Platt, a trusted name in the industry. You can learn more about their products by visiting their website: Leggett & Platt Reclining Mechanisms. You can purchase them on Ebay as well. Amazon do not carry too many options.
5. Recliner Control Switch / Hand Held Remote
Controllers are the most common part of a recliner to fail, but they are also the easiest to find and replace. You can get them on Amazon at the best prices online. Controllers can look different depending on the model, so it’s important to check that the pin connections match and that the controller fits the opening hole in the armrest or the side of the cushion. Handheld remotes are often the easiest replacement option to quickly bring your recliner back to working condition and they are easy to install.
4. Recliner Power Adapter
The recliner power adapter plays an important role in supplying electricity to the recliner, ensuring the motor and controls work properly. It’s also a key part of troubleshooting broken components. The adapter light should remain solid green at all times. If the light blinks green or does not light up, it indicates electrical problems, such as a pinched wire or a faulty component like the motor, controller, or wiring. A working adapter not only powers the recliner but also helps confirm where the issue lies, making it easier to identify and replace broken parts. Amazon is one of the largest sources for affordable replacement power adapters, offering a wide variety of options to fit different recliner models.
Wrapping It Up
Keeping your recliner in perfect working condition doesn’t have to be complicated or expensive. By understanding the key parts like the actuator/motor, tension springs, footrest brackets, scissor mechanisms, controllers, and power adapters, you can easily identify issues and replace broken components. Most of these parts are widely available, and platforms like Amazon offer affordable solutions to get your recliner working like new again.
At Number2project Recliner Repair Experts, we’ve repaired over 700 recliners every year and know exactly where to find the best parts at the right price. For those who are handy, we also offer recliner repair service calls over video call, where we can diagnose your recliner issues remotely. Thanks to our experience, we’ll guide you step-by-step to troubleshoot and fix the problem efficiently.
Whether you need a part recommendation or a repair solution, we’re here to help you every step of the way. A well-maintained recliner means more comfort, more relaxation, and fewer worries—let us help you keep it that way!
