#453 Two Control One Junction Box for Motion Furniture

Compatibility:

• Single Motor Only: This junction box is designed for chairs with a single motor. It is not compatible with chairs equipped with two or more motors.
• Linear Actuator Compatibility:
  • This junction box works specifically with linear actuator motors that have two leads:
    • A 2-pin plug for the power adapter.
    • A round 5-pin plug for the switch/control.
  • If your actuator has only one lead & plug this junction box will not be compatible with your chair.
  • If the plug for the switch/control of your actuator is not 5 pin, or the 5 pin plug is not the standard version (for example LA Z BOY chairs), this junction box will not be compatible with your chair.
• Wire Sequence:
  • The wire sequence of the 5-pin plug must match that of OKIN linear actuators.
  • If the wire sequence of your motor differs, this junction box will not be compatible with your chair.

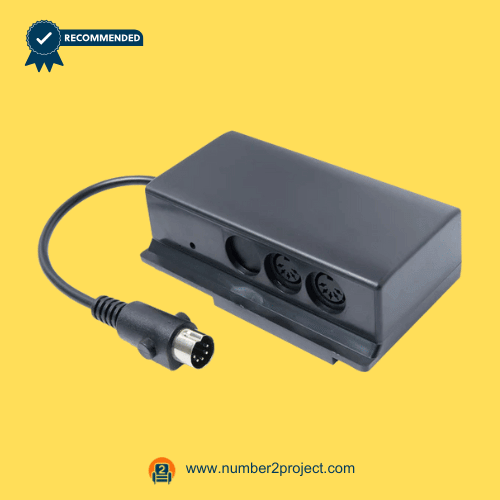

Connection Diagram

• Disconnect the existing switch from the linear actuator.
• Connect the male 5-pin plug of the junction box to the linear actuator.
• Plug the remote controller and the original switch into the 5-pin sockets on the junction box.

Note:

• Please mount the junction box to the chair properly to prevent damage from moving parts.
