#1221 MLSK35-D(L) 5-Button Switch for Power Recliner Chairs W/ USB

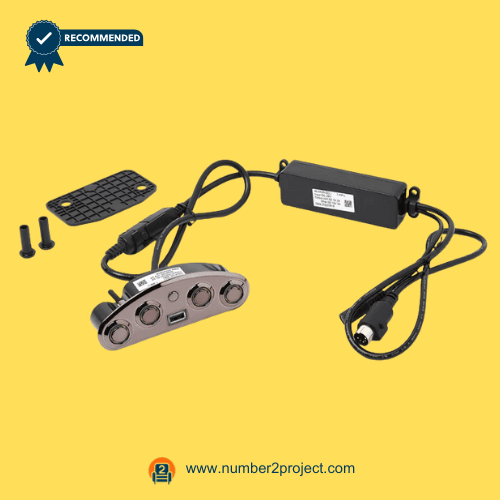

This is the genuine MLSK35-D(L) switch kit, containing the switch body, a wire harness, an installation plate, and two plastic bolts. It features five buttons and is suitable for a power recliner or lift chair with two motors.

Configuration:

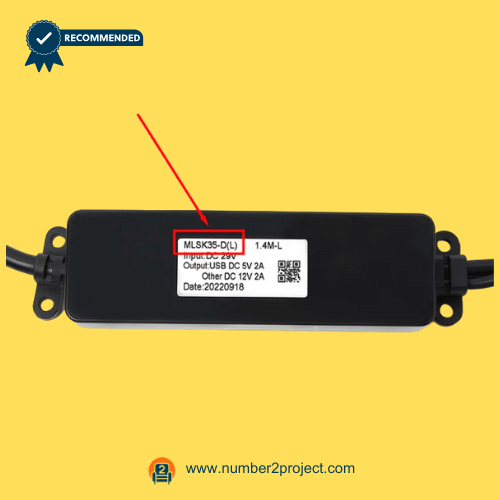

• The switch body uses a 10-pin male plug to connect with the wire harness.
• The wire harness has an 10-pin female plug on one end for the switch body, and two plugs on the other end:
  • A male 5-pin plug connects to the footrest motor.
  • A female barrel plug connects to the LED light strip.

Compatibility:

• This switch is a direct replacement for models MLSK35-D(L), MLSK35-D(LSF)
• It is not compatible with models other than those listed above.
• When facing the chair, this switch fits the left-side armrest for outer-surface mounting, or the right-side armrest for inner-surface mounting.

Features:

• 5 Buttons:
  • 4 large buttons control the chair open/close and headrest tilt functions.
  • 1 small center button turns the LED light strip ON/OFF.
• Backlit: Features blue backlighting for easy access in low light.
• USB Port: Provides a 5V/2A output for charging mobile devices.

Package includes:

• MLSK35-D(L) switch x 1
• Wire harness x 1
• Installation plate x 1
• Installation bolts x 2
