#1154 eMoMo HX90NC2LU 5-Button Recliner Lift Chair Switch with USB & 3-Plug Connection

This is a genuine eMoMo HX90NC2LU switch, a 5-button control unit designed for power recliners, lift chairs, sectional sofas, and other types of motion furniture.
It features three connection plugs for installation.
When facing the chair, this switch is designed for the right-side arm when mounted on the outer side (away from the seat), or for the left-side arm when mounted on the inner side (close to the seat).

Compatibility

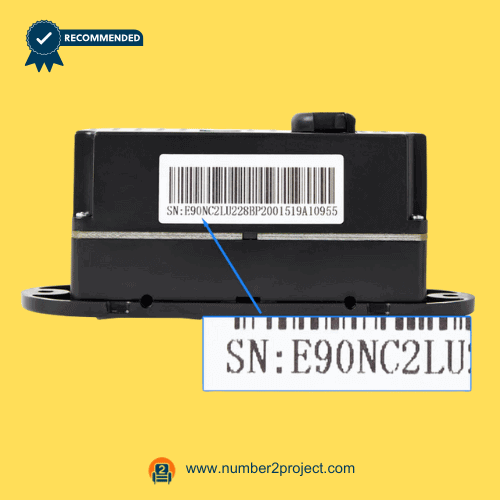

Please note that the HX90 switch family includes many sub-models which are generally not cross-compatible. To confirm this switch is a suitable replacement, check your current switch’s serial number.

• This HX90NC2LU model directly replaces switches with serial numbers beginning with:
  • SN: E90NC2LU
  • SN: WT90NC2LU
  • SN: ZE90NC2LU
  • *The character immediately following these prefixes must be a digit (0-9) or the letter ‘V’ to be compatible. (e.g., SN: E90NC2LU5 or SN: WT90NC2LUV are valid)*
• It also specifically replaces the HX90NC2LU-XW01 model with serial numbers beginning with:
  • SN: E90NC2LUXW01
  • SN: WT90NC2LUXW01
  • SN: ZE90NC2LUXW01
  • *The character immediately following these prefixes must be a digit (0-9) or the letter ‘V’ to be compatible.


    Feature

    • Button Controls:
      • Two butterfly buttons for chair up/down and headrest tilt.
      • One center button for LED light on/off (short click) and chair reset (long press).
    • Integrated Charging: Built-in USB port (5V, 2A output) for charging mobile devices.
    • Connection Plugs:
    • One round 5-pin plug for the linear actuator motor.
    • Two 2-pin plugs for the cup holder and LED light strip.

Package Includes

• 1 x HX90NC2LU Switch
• 1 x Aluminum Switch Face Plate
• 2 x Mounting Screws

• FREE SHIPPING. We ship to US mainland only. Delivery time 5-14 business days.
